Posts from September 2025

npk fertilizer production line

Advantages and applications of the flat die granulator

Written by fertilizer production line on . Leave a comment

The flat die granulator offers significant advantages, with the larger pressure wheel being a key feature. This larger pressure wheel also increases the bearing’s ability to withstand pressure, making the equipment more stable and reliable, and reducing failures caused by pressure. Furthermore, the larger pressure wheel prevents heat generated by extrusion friction from being transmitted to the bearing chamber, ensuring the bearing operates at a low temperature and preventing lubricant leakage, thus extending bearing life. Furthermore, the larger pressure wheel can be repaired two to three times, reducing maintenance costs and increasing project profitability, offering significant advantages over similar equipment.

The flat die granulator is suitable for a wide range of materials. In agriculture, crop straw, such as corn stalks, wheat straw, and rice husks, can be processed into biomass pellet fuel or organic fertilizer. In the domestic sector, some household waste, after sorting and processing, can also be used for pelletizing, achieving resource recycling. In industry, the flat die granulator can easily handle materials such as biofertilizer, coal, carbon black, kaolin, and stone powder, demonstrating its strong material adaptability.

Flat die granulators also play a positive role in environmental protection. On the one hand, they can process large amounts of agricultural and forestry waste, reducing environmental pollution and enabling resource recycling. On the other hand, by converting degradable materials into biodegradable plastic pellets, they provide a new approach to addressing white pollution, promoting the development of environmentally friendly materials and facilitating the achievement of sustainable development goals.

npk fertilizer production line

Large wheel compost turner: Ushering in a new era in organic waste treatment

Written by fertilizer production line on . Leave a comment

With growing environmental awareness, organic waste treatment has become a focus of attention in agriculture, environmental protection, and other fields. As a highly efficient organic waste treatment device, the large wheel compost turner provides powerful support for addressing the organic waste challenge. It not only effectively processes large amounts of organic waste but also transforms it into valuable resources, such as high-quality organic fertilizer, achieving resource recycling.

The large wheel compost turner’s disc consists of multiple rotating discs or paddles, with removable blades or toothed plates on the edges to break up the material. It can easily handle clumping livestock manure, straw, and other materials.

The discs are typically arranged horizontally and rotated by hydraulic or mechanical drive. The machine’s travel system allows it to follow tracks within the compost tank (or windrow) or to propel itself along tires, thus covering the entire compost pile.

During operation, the wheel rotates, the blades cut into the material, and the bottom layer of material is thrown into the air, completing the cutting and lifting action. During the spreading process, the material is fully exposed to the air, and the new and old materials are mixed, achieving both dispersion and mixing. As the equipment moves, the compost is continuously turned, forming a new loose pile, completing the displacement and advancement, and this turning process is repeated over and over again.

The large wheel compost turner, with its unique operating principle, rational structural design, and outstanding practical application results, plays an important role in the field of organic waste treatment.

npk fertilizer production line

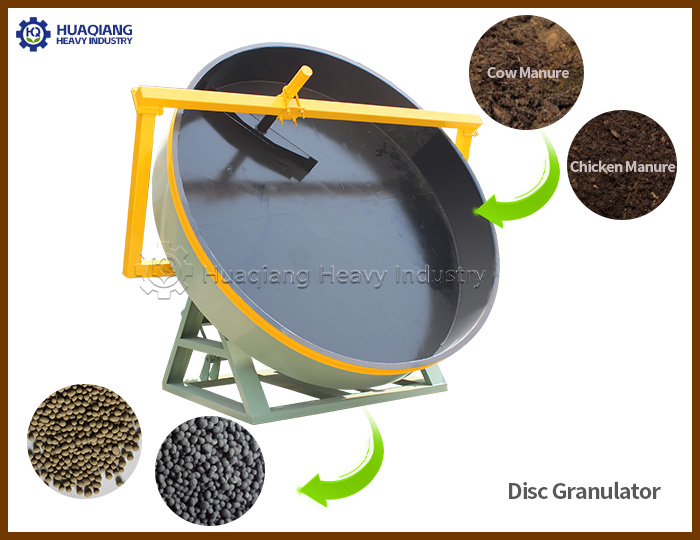

Practical Strategies for Improving the Efficiency of Disc Granulators in Organic Fertilizer Production Lines

Written by fertilizer production line on . Leave a comment

In organic fertilizer production lines, the efficiency of disc granulators directly impacts overall production capacity and finished product quality. To maximize equipment performance, systematic optimization is necessary, encompassing multiple aspects, including material compatibility, parameter control, and standardized operation. Specifically, these four key areas can be addressed.

First, effective material pretreatment is fundamental. Organic fertilizer raw materials, such as livestock and poultry manure and straw, often exhibit uneven moisture content and coarse particle size. Dehydration through extrusion or atomization is essential to precisely control the material moisture content to 35%-45%. This avoids low moisture content, which can lead to difficult pellet formation and high reject rates, or high moisture content, which can cause pellet sticking. Furthermore, a hammer mill combined with a vibrating screen can be used to refine the material to a particle size of 80-120 mesh, removing impurities and coarse particles, reducing granulation resistance, and clearing obstacles for subsequent processes.

Second, scientifically adjusting equipment parameters is crucial. The disc inclination angle and speed should be adjusted flexibly based on the material characteristics. Typically, the inclination angle is set at 18°-22°, and the speed is controlled between 15-25 rpm. For highly viscous materials, the inclination angle can be increased and the speed increased to reduce wall sticking. For dry materials, the inclination angle and speed should be reduced to ensure adequate rolling and forming of the pellets. Furthermore, installing an atomizing spray system allows moisture to be evenly applied to the material surface, preventing overwetting and improving pellet uniformity and forming speed.

Furthermore, standardized operational management is essential. Operators must strictly adhere to the procedures of pre-startup inspection, monitoring during operation, and post-shutdown cleaning. Before starting the machine, check bearing lubrication and disc levelness. During startup, control the material feed rate to avoid overloading and resulting in particle size fluctuations. If problems such as overfine particles or wall sticking are detected, fine-tune parameters promptly to minimize downtime and ensure continuous and stable operation.

Finally, regular maintenance can extend the life of the equipment and maintain high efficiency. Clean the discs of residual material and inspect the liner for wear daily. Tighten the liner screws and adjust the drive belt tension weekly. Replace the bearing lubricant and test the motor performance monthly. Promptly replacing worn parts prevents minor faults from becoming major problems, ensuring the disc granulator is always in optimal working condition and helping improve the quality and efficiency of your organic fertilizer production line.

npk fertilizer production line

The Development Direction of NPK Fertilizer Production Lines in the Context of Green Agriculture

Written by fertilizer production line on . Leave a comment

Amid the booming development of green agriculture, NPK fertilizer production lines are undergoing profound transformation, striding forward towards environmental protection, high efficiency, and intelligent technologies.

Technological innovation has become the core driving force behind the green development of NPK fertilizer production lines. Controlled-release technology continues to evolve. By optimizing coating materials and processes, it achieves precise nutrient release, tailored to the needs of crops at different growth stages, significantly improving fertilizer utilization and reducing nutrient loss and environmental pollution. For example, the bio-based polyurethane-coated controlled-release fertilizer developed by Weisheng Liansu has increased fertilizer utilization from 35% to 80%. Furthermore, breakthroughs are being made in the research and application of new synergists. For example, the addition of urease inhibitors and nitrification inhibitors effectively inhibits nitrogen conversion and prolongs fertilizer effectiveness.

Production models are shifting towards green, low-carbon, and circular approaches. On the one hand, energy utilization is becoming increasingly efficient, with clean energy sources like solar and wind power gradually being integrated into production lines, reducing dependence on traditional fossil fuels. On the other hand, waste recycling systems are continuously improving, with dust, waste residue, and wastewater from the production process being recycled and treated and re-entered production, maximizing resource utilization.

Product upgrades are closely aligned with the needs of green agriculture. Functional NPK fertilizers are emerging in large numbers, with specialized fertilizers developed for acidification, alkalinity control, and continuous cropping resistance, tailored to different soil types and crop characteristics. Furthermore, organic-inorganic compound NPK fertilizers are gaining popularity, combining the long-lasting properties of organic fertilizers with the quick-acting properties of inorganic fertilizers, improving soil fertility while ensuring crop nutrient availability.

Intelligence and precision are integrated throughout the entire production process. From raw material procurement and blending to production process control and finished product quality testing, sensors, the Internet of Things, and big data technologies enable precise control. This not only enables real-time monitoring of production parameters and timely adjustments and optimization to ensure stable product quality, but also provides farmers with customized fertilizer formulas based on soil testing data and crop growth models, enabling precise fertilization.

Under the trend of green agriculture, NPK fertilizer production lines must continue to innovate to meet agricultural production needs while protecting the ecological environment and achieving sustainable agricultural development.

npk fertilizer production line

Drying and Cooling Processes in Organic Fertilizer Production Lines

Written by fertilizer production line on . Leave a comment

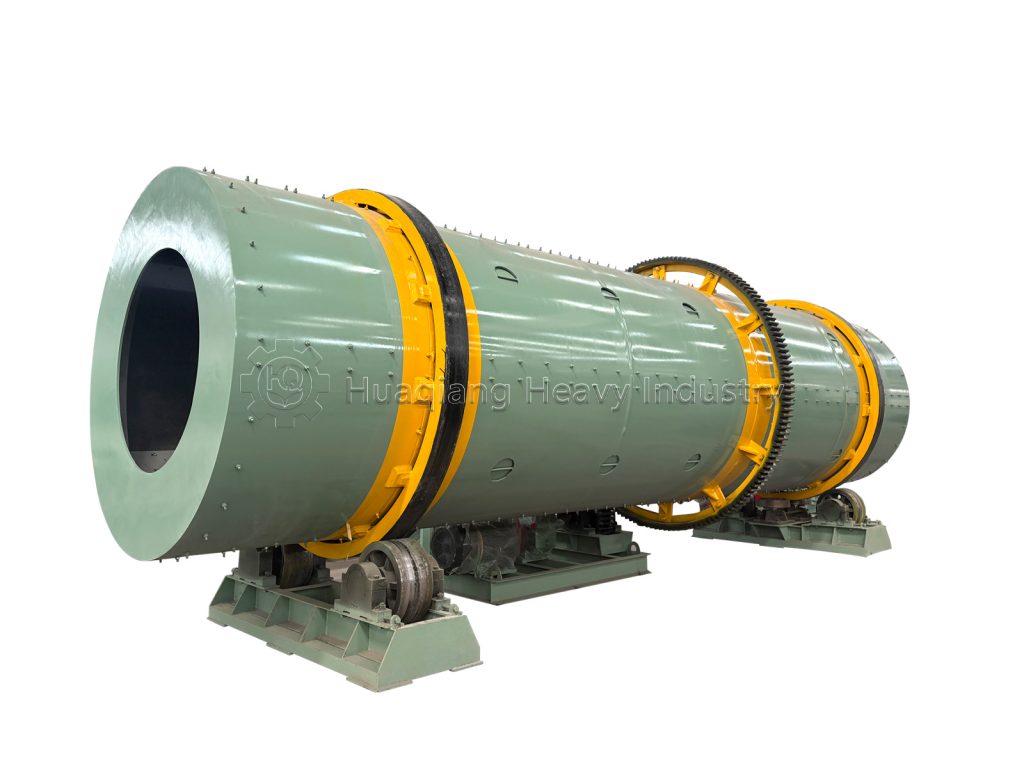

In the drying and cooling stages of the organic fertilizer production line, drum fertilizer dryers and drum fertilizer coolers have become key equipment for achieving large-scale production due to their stable and efficient performance. The two are seamlessly connected to jointly ensure the quality of organic fertilizer products and production efficiency.

The drum fertilizer dryer is essential for dehydrating and shaping organic fertilizer. The moisture content of fermented organic fertilizer can reach as high as 50%-60%, requiring treatment in the drum dryer to reduce it to a safe storage range of 15%-20%. This equipment utilizes an inclined drum structure. External heating or hot air penetration ensures continuous tumbling of the material within the drum, ensuring full contact with the heat source. During operation, the hot air temperature must be precisely controlled at 60-80°C, ensuring rapid water evaporation while preventing high temperatures from damaging beneficial microorganisms such as Bacillus subtilis and lactic acid bacteria, as well as organic matter in the organic fertilizer. Furthermore, the drum dryer’s sealed design and exhaust gas recovery system effectively reduce dust and volatile gas emissions, meeting environmental standards and adapting to the needs of production lines of varying sizes. The drum cooler is a key piece of equipment for cooling and improving the quality of dried materials. The temperature of dried organic fertilizer can reach 40-50°C. Direct packaging can easily generate condensation, leading to clumping.

The drum fertilizer cooler utilizes a countercurrent heat exchange principle. Cool air enters from one end of the drum and contacts the hot material at the other end. As the material rotates, it efficiently cools the material, keeping it within +5°C of the ambient temperature. Its unique internal lifting plate structure ensures uniform material agitation and cooling, while further removing any residual free moisture. This loosens the organic fertilizer particles, improving product flowability and appearance. Furthermore, the drum cooler’s enclosed design reduces dust spillage, minimizing dust pollution in the production environment and ensuring smooth subsequent screening and packaging processes.

The synergistic application of the drum fertilizer dryer and drum fertilizer cooler creates an efficient and stable drying and cooling system for the organic fertilizer production line. By rationally matching equipment parameters and process conditions, we can maximize the retention of organic fertilizer nutrients and biological activity, improve production efficiency, reduce energy consumption and losses, provide high-quality and stable organic fertilizer products for the agricultural field, and promote the development of green agriculture.

npk fertilizer production line

Problems and Solutions in Bio-Organic Fertilizer Production Lines

Written by fertilizer production line on . Leave a comment

During the production process, bio-organic fertilizer production lines often face various problems that affect product quality and production efficiency, requiring precise identification and proper resolution.

Two major issues are common in the raw material processing phase. First, an imbalance in the raw material ratio. If the ratio of livestock and poultry manure to straw is inappropriate, the carbon-nitrogen ratio will deviate from the optimal range (25:1-30:1), thereby affecting fermentation efficiency. For example, excessive straw will slow fermentation, while excessive manure will easily produce a foul odor. The solution is to strictly adjust the ratio according to test data and regularly test the raw material composition. Second, excessive raw material impurities. Impurities such as soil and gravel can damage subsequent equipment and reduce the purity of the organic fertilizer. A vibrating screen should be installed at the raw material inlet to preemptively remove impurities.

The fermentation stage of a bio-organic fertilizer production line is crucial. Common problems include abnormal fermentation temperatures and incomplete composting. Excessively high temperatures (over 70°C) kill beneficial microorganisms, while temperatures that are too low cannot effectively kill harmful bacteria and insect eggs. Temperature control requires adjusting ventilation and the frequency of the compost turning machine. For example, increase ventilation when the temperature is too high, reduce ventilation when it is too low, and cover with insulation film. Incompletely composted organic fertilizer, when applied to the soil, will ferment again, potentially burning crop roots. This can be addressed by extending the fermentation time until the material turns dark brown and has no noticeable odor before proceeding to the next step.

Common equipment operation issues include conveyor blockage and reduced grinder efficiency. Conveyor blockage is often caused by excessive moisture content or excessive feed rate. The moisture content of the raw materials should be controlled between 50% and 60%, and the feed rate should be adjusted according to the equipment’s capacity. Reduced grinder efficiency is often caused by blade wear or screen blockage. Blade wear should be regularly inspected and replaced, and the screen should be cleaned of impurities.

Product quality issues primarily arise from excessive moisture content and uneven nutrient distribution. Excessive moisture content can lead to clumping and mold in the finished product. Drying parameters should be optimized to ensure the moisture content is below 15%. Uneven nutrient distribution is related to insufficient mixing of raw materials. High-efficiency mixing equipment should be used in the mixing process to extend the mixing time and ensure uniform mixing of materials.

npk fertilizer production line

Advantages of Rotary Drum Granulators over Disc Granulators

Written by fertilizer production line on . Leave a comment

When selecting organic fertilizer granulation equipment, both rotary drum and disc granulators are commonly used. However, rotary drum granulators, with their multi-dimensional performance advantages, better meet the efficiency and scale requirements of modern organic fertilizer production lines. The differences between the two are primarily reflected in the following four aspects.

More flexible capacity adaptability meets the needs of large-scale production. Disc granulators are limited by the diameter of their discs, typically with an hourly output of 0.5-5 tons per unit, making them suitable only for small production lines. By adjusting the drum length and diameter, rotary drum granulators can achieve hourly outputs of 1-20 tons per unit. They meet the basic production needs of small and medium-sized enterprises as well as the large-scale production of large factories. They eliminate the need for multiple units in parallel, reducing production line floor space and equipment investment costs.

They offer greater raw material compatibility and reduce pretreatment complexity. Organic fertilizer raw materials have large fluctuations in moisture and composition. Disc granulators must maintain a moisture content of 20%-30%. They also struggle with crude fiber materials, which tend to stick to the disc and produce uneven granules. Rotary drum granulators can process materials with moisture levels of 25%-40%. Leveraging the multi-directional force of the rotating drum, they can smoothly granulate composted straw, livestock manure, and other materials without the need for additional crushing or conditioning, streamlining the process.

The resulting product is more stable and meets standardized requirements. Due to the single direction of centrifugal force, disc granulators produce pellets with a roundness of 70%-80% and large particle size variations. Rotary drum granulators, on the other hand, utilize internal rollers to guide and rotate the pellets, resulting in a fully rolling and shaping process with a roundness exceeding 90% and a precisely controlled particle size of 2-5mm. Furthermore, the granulation process is gentle, does not damage organic matter, and the pellets are of moderate strength. Transportation losses are 15%-20% lower than those from disc granulators.

Operation and maintenance are also simplified, resulting in lower long-term costs. Disc granulators require frequent manual adjustments of inclination and speed, resulting in wear and tear on the disc edges and requiring frequent replacement. Rotary drum granulators, on the other hand, utilize automated control to precisely adjust speed and feed rate, eliminating the need for manual oversight. The drum is constructed of wear-resistant stainless steel, resulting in a 40% lower failure rate and over 30% lower maintenance costs, resulting in superior long-term economics.

In summary, the advantages of the rotary drum granulator in terms of production capacity, raw material compatibility, finished product quality, and cost control make it ideally suited to the diverse needs of organic fertilizer production lines, making it an ideal choice for improving efficiency and competitiveness.

npk fertilizer production line

A New Path To “Improve Efficiency And Reduce Costs” For Disc Granulation Production Lines

Written by fertilizer production line on . Leave a comment

In the modern fertilizer production industry, the disc granulator acts like a skilled sculptor, meticulously shaping various raw materials into uniform, robust fertilizer pellets. As the core equipment in fertilizer production lines, it is not only suitable for granulating organic fertilizers, organic-inorganic compound fertilizers, chemical fertilizers, and biofertilizers, but also serves as an indispensable component in NPK fertilizer production technology.

When organic fertilizer produced through disc granulation lines is applied to soil, it significantly enhances organic matter content and increases soil organic nitrogen, improving soil structure. The advantages of this production system are clear: high pellet uniformity, effortless moisture control, and exceptional granule strength, laying a solid foundation for the entire NPK fertilizer production process.

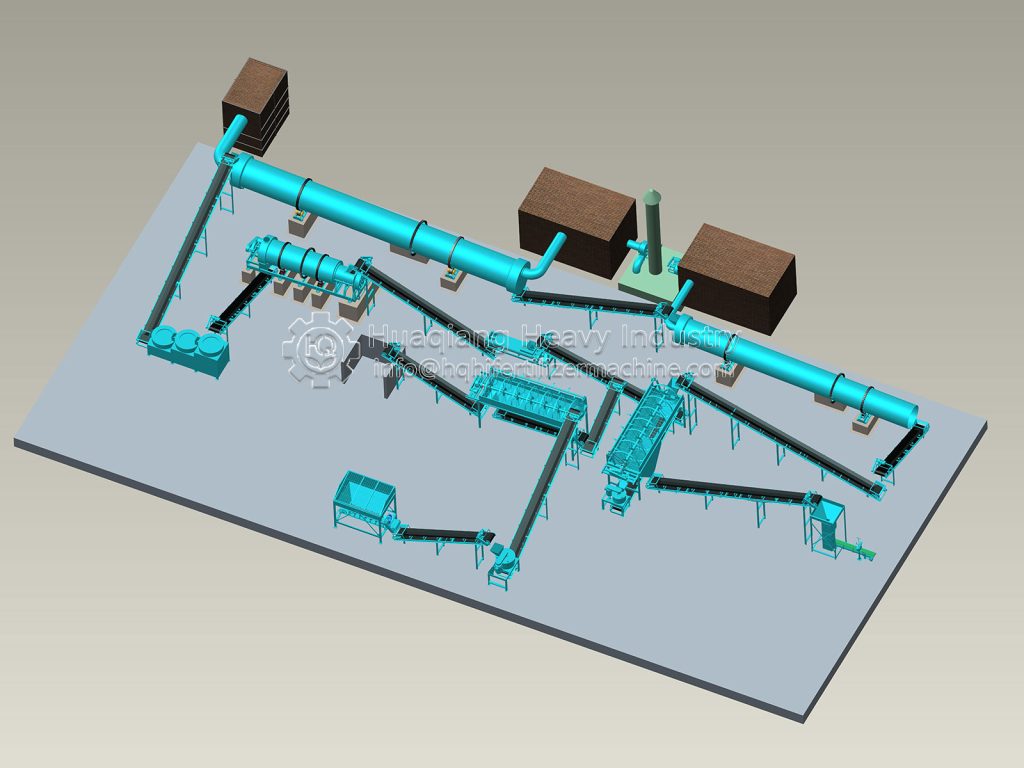

A complete disc granulation production line resembles a well-trained orchestra, with each device playing a unique role: horizontal mixers ensure thorough blending of raw materials; drum screening machines achieve precise classification; coating machines provide protective layers; multi-silo single-weigh static automatic batching systems enable accurate proportioning; and automatic packing machines complete the final step. The conductor of this orchestra is the highly efficient and reliable NPK fertilizer granulator.

Modern disc granulator designs incorporate innovative concepts: novel and rational structure, significantly reduced weight and height, and flexible, convenient process layout, making them particularly suitable for technical upgrades in existing fertilizer plants. The large-inclination disc body allows flexible adjustment through gaskets, coupled with unique disc treatment technology, ensuring smooth discharge without tearing. Unpowered combination scrapers automatically clean edges, while corner scrapers handle dead spots—these innovative designs result in finished pellets with uniform content and exceptional quality.

More importantly, disc granulation technology demonstrates unique advantages in the NPK fertilizer production process. By precisely controlling disc inclination and rotation speed, producers can easily adjust pellet size to meet the nutritional needs of different crops. This flexibility makes disc granulators the preferred equipment for compound fertilizer manufacturers, especially excelling in producing specialty formula fertilizers.

From raw material proportioning to finished product packaging, disc granulation production lines achieve fully automated control, not only improving production efficiency but also ensuring product quality stability. This is precisely the goal pursued by modern NPK fertilizer production technology: producing the most efficient fertilizers in the most economical way, providing strong support for global food security.

npk fertilizer production line

Compost Giants: Are Wheel Turners Changing the Game?

Written by fertilizer production line on . Leave a comment

The large wheel turning compost machine is a pivotal fertilizer production machine for efficient aerobic composting, a core stage in biofertilizer production. Its primary advantage lies in drastically accelerating organic decomposition, creating uniform, high-quality compost. This pre-processed material is then perfectly prepared for the subsequent fertilizer compaction machine, which forms it into dense granules. Together, this compost fertilizer machine and the compactor form a seamless, efficient sequence within the complete organic fertilizer production equipment line. Their synergy ensures optimal conditions for microbial activity and granulation, maximizing the output and quality of the final biofertilizer product.

The Giant Wheel: A Silent Revolution in Composting

In the field of organic waste processing, an oddly-shaped machine is quietly rewriting the rules of compost production—the large wheel turner. These steel giants with diameters up to 4 meters, resembling “Ferris wheels for compost”, are pushing traditional composting technology to new heights with their unique operation.

What Makes It Special?

Unlike traditional turners, the large wheel turner’s core advantage lies in its gentle yet efficient approach. The massive wheel rotates slowly, lifting and sprinkling compost materials gently to achieve near-perfect aeration. This design prevents structural damage from material compression, making it ideal for compost containing woody materials.

Comparative studies show: composting cycles using wheel turners are 30-40% shorter than traditional methods, with oxygen penetration nearly doubled and microbial activity significantly enhanced.

Engineering Brilliance

Modern large wheel turners are mechanical engineering masterpieces. Their core component—a 3-4 meter diameter wheel—features specially designed “turning teeth” optimized through fluid dynamics to deliver optimal turning with minimal energy consumption. Automatic control systems precisely adjust rotation speed based on material conditions.

Environmental and Economic Wins

Beyond technical advantages, wheel turners offer significant environmental benefits. Their enclosed design reduces ammonia emissions by 70%, while low energy consumption cuts processing costs by over 40% per ton. For facilities handling hundreds of tons of organic waste daily, this translates to substantial savings.

As global interest in organic agriculture grows, large wheel turners are transitioning from specialty equipment to mainstream solutions. More than just machines, they’ve become vital links connecting organic waste with sustainable agriculture.

npk fertilizer production line

Do you know the rotary screen used in the organic fertilizer production line?

Written by fertilizer production line on . Leave a comment

In modern agricultural production, more and more attention has been paid to the production of organic fertilizer, which can not only provide nutrients needed by plants, but also improve soil structure and soil fertility. In the production process of organic fertilizer, there is an indispensable link, that is, screening. In this process, Rotary Screening Machine plays an important role.


1. Importance of screening on Organic Fertilizer Production Line


Organic Fertilizer Production Line is a complex process, it includes the collection of raw materials, fermentation, grinding, mixing, granulation, drying and packaging and other steps. In these steps, screening is a key link to ensure product quality. Through screening, impurities in raw materials can be removed to ensure the purity of fertilizer, while fertilizer particles can also be graded to meet the needs of different crops.

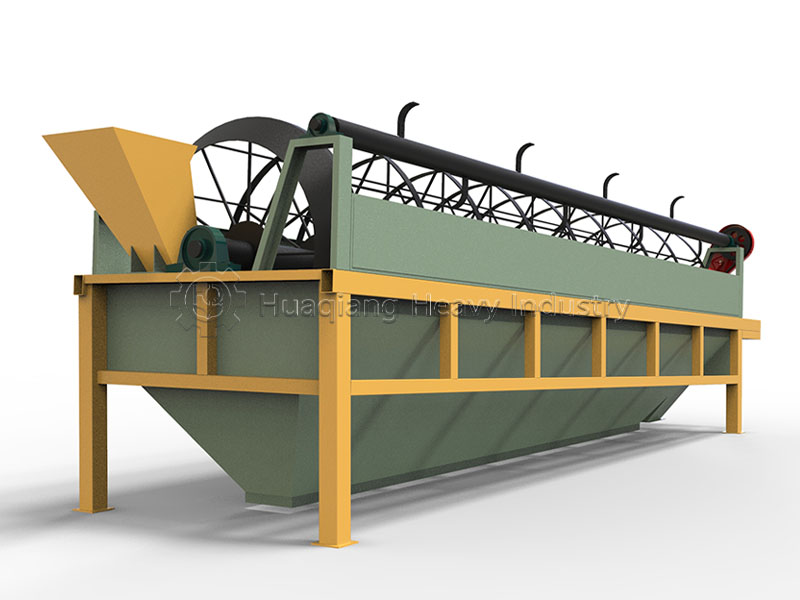

2. Working principle of Rotary Screening Machine


Rotary Screening Machine is a commonly used screening equipment in Organic Fertilizer Production Line. It uses a rotating drum to grade the material using a screen. The material enters the drum from the feed end, and under the rotating action of the drum, the smaller particles fall through the screen, while the larger particles are discharged from the discharge end. This equipment has the advantages of simple structure, convenient operation and high screening efficiency, which is very suitable for the screening work of organic fertilizer.

3. Advantages of Rotary Screening Machine


Rotary Screening machines offer many advantages over traditional screening machines. First of all, its high screening accuracy can effectively remove impurities and unqualified particles in the material. Secondly, the Rotary Screening Machine has stable operation, low maintenance cost, and is suitable for long-term continuous operation. In addition, the Rotary Screening Machine’s compact design and small footprint make it ideal for the layout requirements of organic fertilizer production lines.
IMG_2680_1

4. Application of screening machine in organic fertilizer production


In the production process of organic fertilizer, the screening machine is not only used for the screening of the final product, but also for the treatment of raw materials. For example, when processing raw materials such as livestock manure and crop straw, the screening machine can remove large impurities in it to ensure the smooth progress of subsequent fermentation and granulation process. In addition, the screening machine can also be used for the pre-packaging treatment of organic fertilizer to ensure that the packaged fertilizer particles are uniform and improve the market competitiveness of the product.


Conclusion


From the above introduction, we can see that Rotary Screening Machine plays an important role in Organic Fertilizer Production Line. It not only improves the production efficiency of fertilizer, but also ensures the quality of fertilizer, and is one of the indispensable equipment in the production of organic fertilizer. With the continuous expansion of the organic fertilizer market, the application of Rotary Screening machines will be more and more extensive.
